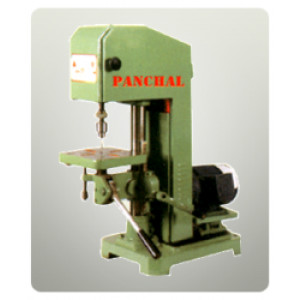

6 MM Tapping Machine
6 MM Tapping Machine Details
We are acknowledged as a trustworthy name based in Ahmedabad(India) and offering products to diverse Ahmedabad(India)s. As quality is our topmost concern, we give maximum priority to the stringent checking of the entire range of products.
Details :
• Tapping Capacity in Steel - 6 MM
• No. Of Spindle Speed - N/A
• Spindle Nose Taper - Solid
• Spindle Center to column - 87 MM
• Spindle Travel - N/A
• Maximum Distance Between Spindle to Table - 260 MM
• Maximum Distance Between Spindle To Base - N/A
• Working Surface of Table - 157 x 129 MM
• Working surface of Base - N/A
• Column Diameter - 47 MM
• Base Of Machine - 378 X 223MM
• Overall Dimension of M/C. - 635 X 360 X 495
• Motor Speed - 1440 RPM
• Motor 3 Phase Induction A.C. - 0.5H.P.
• Weight Of Machine (Approx) - 45 Kg.
| Tapping Capacity in Steel | 6 mm |
| Motor Three Phase Induction AC | 0.5 HP |
| Weight Of Machine | 45 Kg |
| Spindle Nose Taper | Solid |
| Spindle Center to Column | 87 mm |
| Maximum Distance Between Spindle to Table | 260 mm |
| Working Surface of Table | 157 x 129 mm |
| Column Diameter | 47 mm |
| Base Of Machine | 378 x 223 mm |
| Overall Dimension of MC | 635 x 360 x 495 mm |
| Motor Speed | 1440 RPM |
